High Quality Coiled Cable for Truck 4460087000 PRO5310000

Lugar de origen:

PORCELANA

Nombre de la marca:

linke

Certificación:

ISO9001,UL,CE

Contacta con nosotros

Solicitar una cita

Detalles del producto

Rango de aplicación:

Equipo electrónico

Material conductor:

Cobre

Entorno operativo:

Uso interior y exterior

Conductor:

Cobre estañado

Opciones de color:

Negro, Rojo, Blanco, Verde, Azul

Tensión nominal:

30V

Peso bruto del paquete:

118.000kg

Voltaje:

300V/300V

Tamaño del paquete:

60.00cm * 50.00cm * 50.00cm

Norma:

M63*1.5

Materiales exteriores:

Personalizar: PVC, PE, LSFOH, caucho de silicona

Plazo de entrega:

7-15 días

Potencia de entrada:

alimentación CC

Solicitud:

Cableado de edificios, circuitos de control

Forma del material:

Alambre plano

Pago y términos de envío

Cantidad de orden mínima

1000M

Precio

Custom-made on demand

Detalles de empaquetado

Hecho a medida bajo demanda

Tiempo de entrega

5-8 días

Condiciones de pago

LC, D/A, D/P, T/T, Unión Occidental

Capacidad de la fuente

50000 m/día

Productos relacionados

Internal Wiring Silicone Jacket Hook-up Wire for Electronic and Electrical Equipment

Consiga el mejor precio

IP68 Waterproof Pg M63*1.5 Cable Gland and Polishing with 30-Day Return Refunds

Consiga el mejor precio

UL3385 Low Smoke Halogen-Free XLPE Insulated Wire and Cable Estimated Delivery Time

Consiga el mejor precio

Twisted Pair Silicone Rubber Insulated Tin-Coated Copper Core Medium Voltage Power Cable

Consiga el mejor precio

Contacta con nosotros

86-0769-81776230

86-18665106395

sales@linkecable.com

Contacta ahora

Descripción de producto

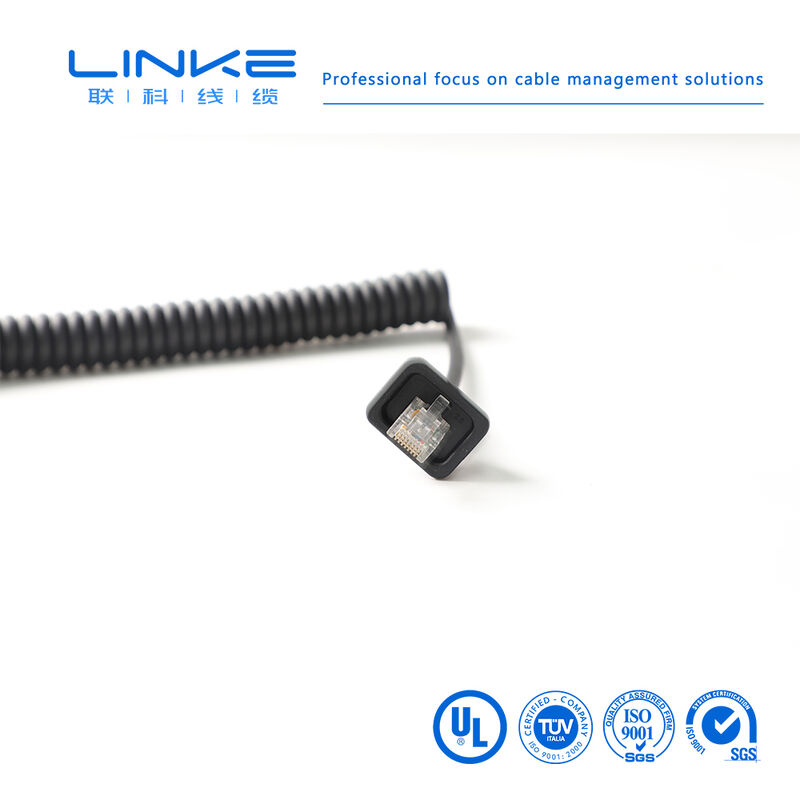

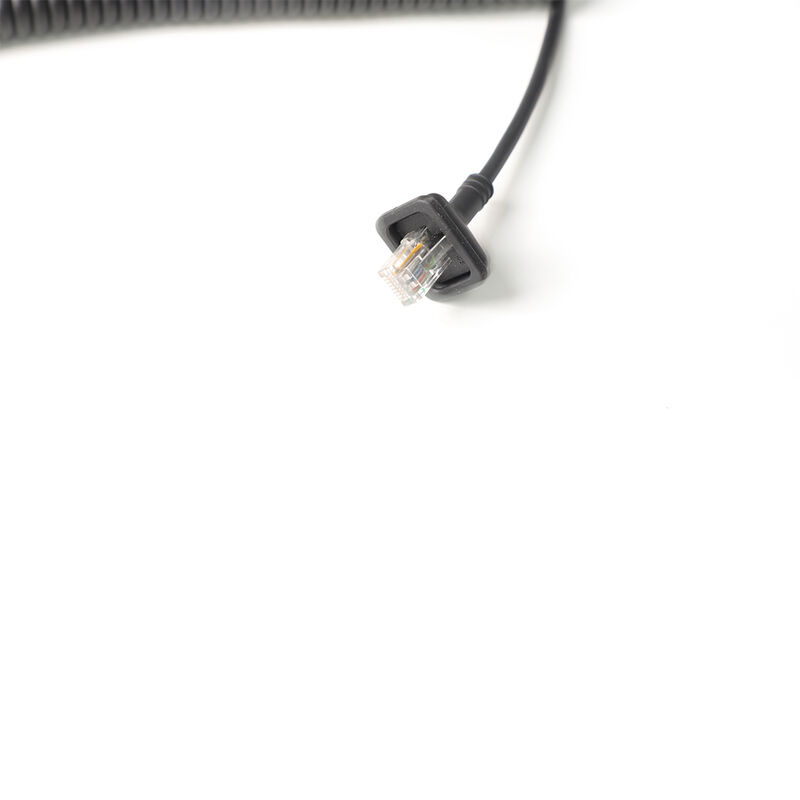

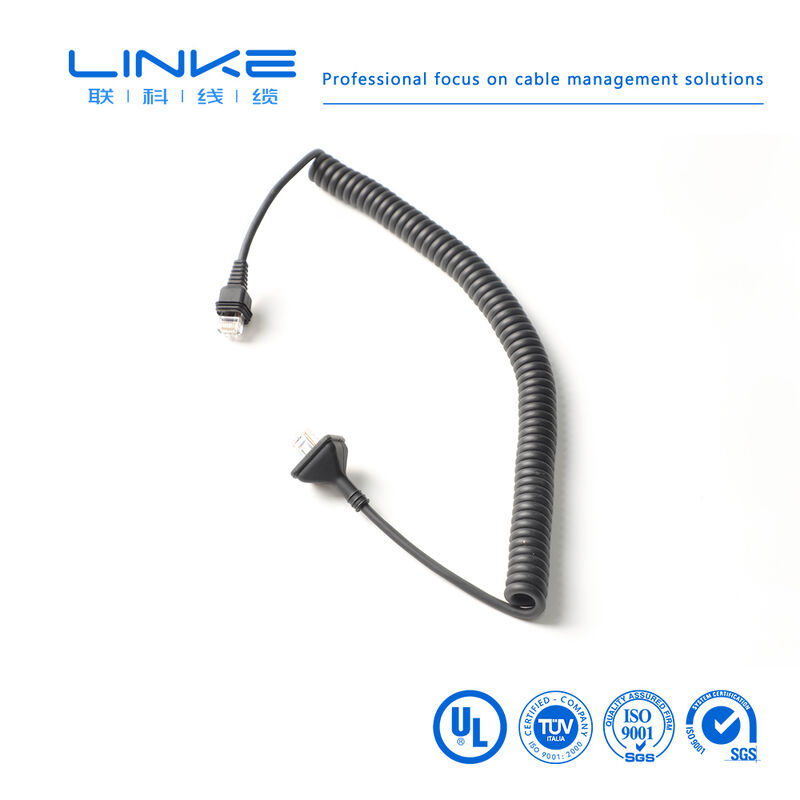

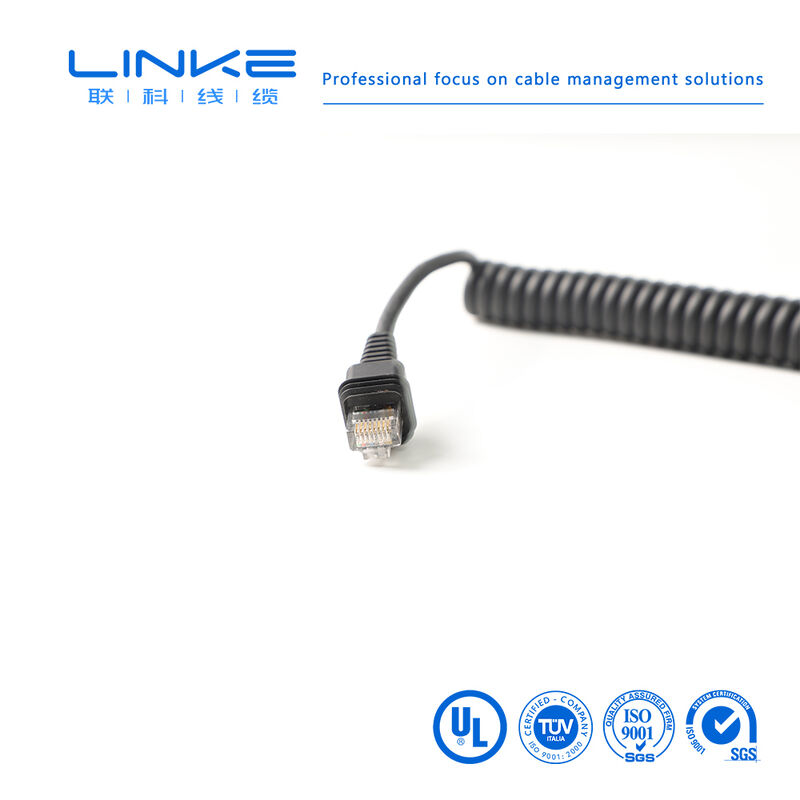

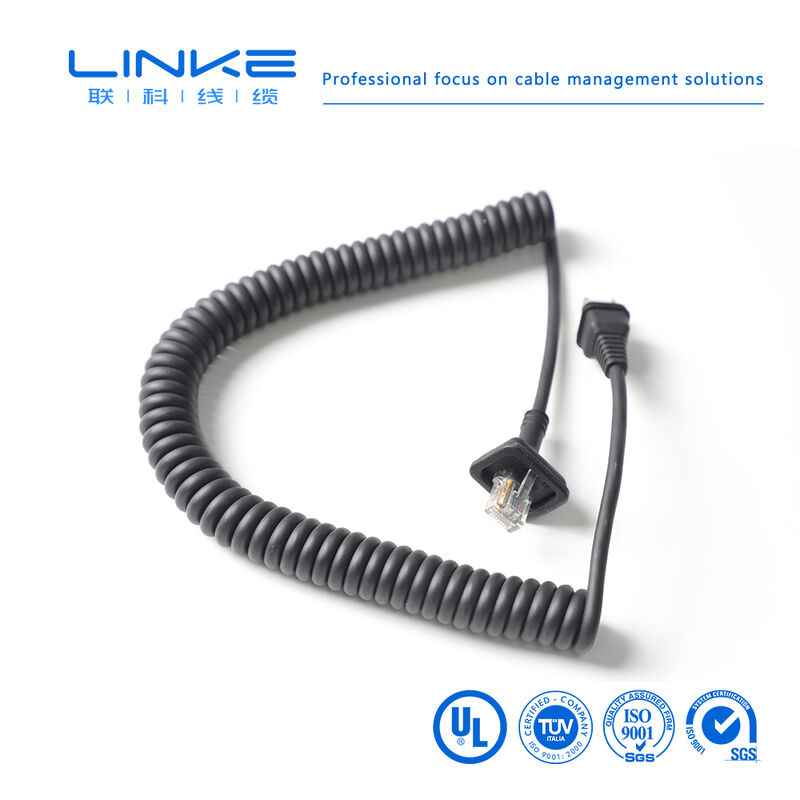

High Quality Coiled Cable for Truck 4460087000 PRO5310000

High Quality Coiled Cable for Truck 4460087000 PRO5310000 0

High Quality Coiled Cable for Truck 4460087000 PRO5310000 1

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

High Quality Coiled Cable for Truck 4460087000 PRO5310000 2

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass
